Instruction Set
RDBox Relay IoT
3 Steps

1. Firmware selection options

2. Hardware setup

3. Provisioning your solution

Step 1: Firmware selection options

1. Ready made box. Click here to order a ready made box.

(with this option just need to jump to step 3)

2. Do it yourself .Click here to download the firmware for RDBox Relay IoT

Once downloaded upload the firmware in the ESP 01. Click here for instructions

Step 2: Hardware setup

Do it yourself > Relay IoT

1. Unscrew the empty RDBox

2. Fix the Backplane board with only 2 frontal screws

3. Plug in the Power board in its specific socket

4. Plug in the Mother board in its specific socket

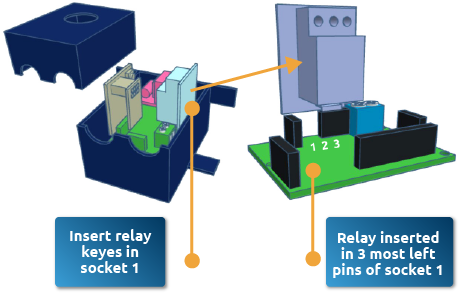

5. Plug in keyes Relay in socket 1

6. Connect the terminals according to your solution design

Step 3: Provisioning your solution

  • Power on the RDBox
  • Search for temporary WiFi network named “RD ESP XXXXXX”
  • Connect your phone / tablet to this network
  • Open your preferred browser and type in the address textbox the
    following IP address 192.168.4.1
  • When the initial screen appears fill in the fields.
    Click here if need help with the initial screen fields.
