Instruction Set
RDBox Relay + Distance IoT
3 Steps

1. Firmware selection options

2. Hardware setup

3. Provisioning your solution

Step 1: Firmware selection options

1. Ready made box. Click here to order a ready made box.

(with this option just need to jump to step 3)

2. Do it yourself .Click here to download the firmware for RDBox Relay + Distance IoT

Once downloaded upload the firmware in the ESP 01. Click here for instructions

Step 2: Hardware setup

Do it yourself > RDBox Relay + Distance IoT

1. Unscrew the empty RDBox

2. Fix the Backplane board with only 2 frontal screws

3. Plug in the Power board in its specific socket

4. Plug in the Mother board in its specific socket

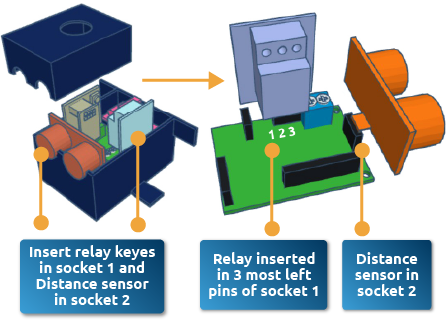

5. Plug in keyes Relay in socket 1 and distance sensor in socket 2

6. Connect the terminals according to your solution design

Step 3: Provisioning your solution

  • Power on the RDBox
  • Search for temporary WiFi network named “RD ESP XXXXXX”
  • Connect your phone / tablet to this network
  • Open your preferred browser and type in the address textbox the
    following IP address 192.168.4.1
  • When the initial screen appears fill in the fields.
    Click here if need help with the initial screen fields.
